CHARACTERISTICS | |
---|---|
Construction characteristics | |
Type of cable | U/UTP |
Outer sheath | LSZH |
Colour | Orange |
Dimensional characteristics | |
Diameter over insulation | 1.0 mm |
Conductor cross-section (AWG/KCMIL) | 23 |
Nominal outer diameter | 6.1 mm |
Electrical characteristics | |
Characteristic impedance | 100 Ohm |
Mutual capacitance | - nF/km |
Max. DC resistance of the conductor at 20°C (Ohm/km) | |
Transmission characteristics | |
Attenuation Crosstalk Ratio, 250MHz | 5.5 dB/100m |
Nominal Velocity of Propagation (NVP) | 69 % |
Propagation delay, max. 100 MHz | 536 ns/100m |
Skew | 45 ns/100m |
Coupling attenuation at 30 MHz | |
Usage characteristics | |
Category | Cat. 6 |
Range | essential-6 |
Minimum Bend Radius - During Installation (under Tension) | 49 mm |
Minimum Bend Radius - Installed | 25 mm |
Ambient installation temperature, range | -10 ... 60 °C |
Operating temperature, range | -20 ... 60 °C |
Flame retardant | IEC 60332-1 |
Fire retardant | |
Smoke density | IEC 61034 |

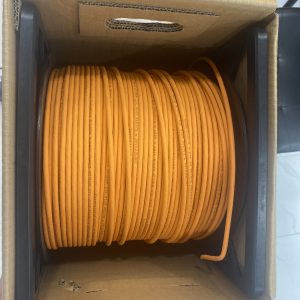

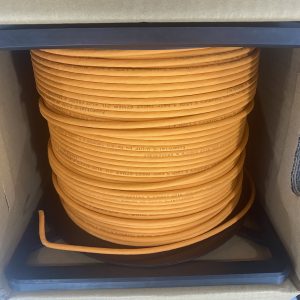

Length | 305 m |

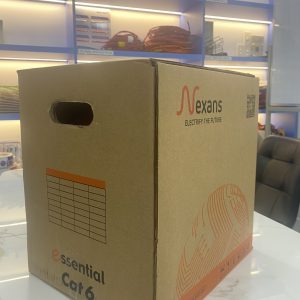

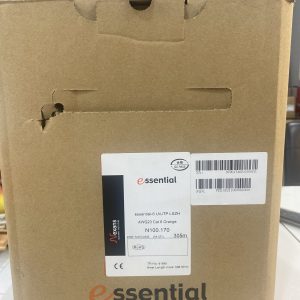

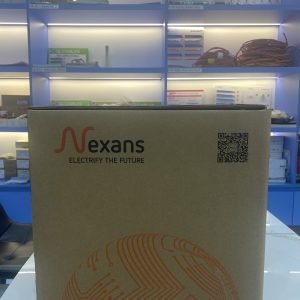

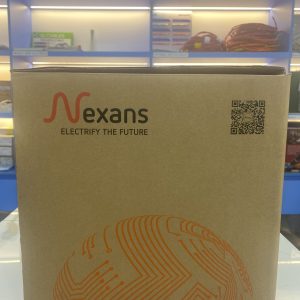

Packaging | Reel in a box |
Field of application | Indoor |
>>> Bạn có thể lựa chọn các loại cáp mạng chất lượng, giá hợp lý tại đây
Đặt mua Cáp mạng Nexans Cat6 – N100.170

Cáp mạng Nexans Cat6 – N100.170
Giá: Liên hệ
